In low-speed transmission applications such as 3D printers and small automation equipment, many engineers face the same frustrating problem: newly installed trapezoidal lead screws develop increasing backlash within just 3 months, leading to thicker layer lines in 3D prints, drifting equipment positioning, scrapped products, and frequent downtime for adjustments.
In fact, 90% of backlash issues are not due to poor screw quality, but rather mistakes in material selection, nut matching, or installation. Today, we will break down the 3 core causes of backlash and share factory-proven solutions, using our T5/T6/T8/T10/T12/Tr8 stainless steel trapezoidal lead screws as practical examples.
1、3 Core Causes of Excessive Backlash
（1） Incorrect Material Selection Accelerates Wear
Many customers choose ordinary carbon steel trapezoidal lead screws to cut costs. However, in high-frequency reciprocating applications like 3D printers, the low wear resistance of carbon steel causes rapid thread profile wear, directly leading to increased clearances.
Our stainless steel trapezoidal lead screws (e.g., 304/316 grade) offer far superior hardness and corrosion resistance compared to carbon steel. They maintain thread precision even in humid or dusty environments, fundamentally reducing wear-induced backlash.
（2）Poor Nut Matching Accuracy Creates Inherent Clearance
Backlash in trapezoidal lead screws is heavily dependent on the fit precision between the screw and nut. If the nut is manufactured with excessive tolerances, or if the brass nut’s thread profile does not match the screw perfectly, inherent clearance exists from installation, which only worsens over time.

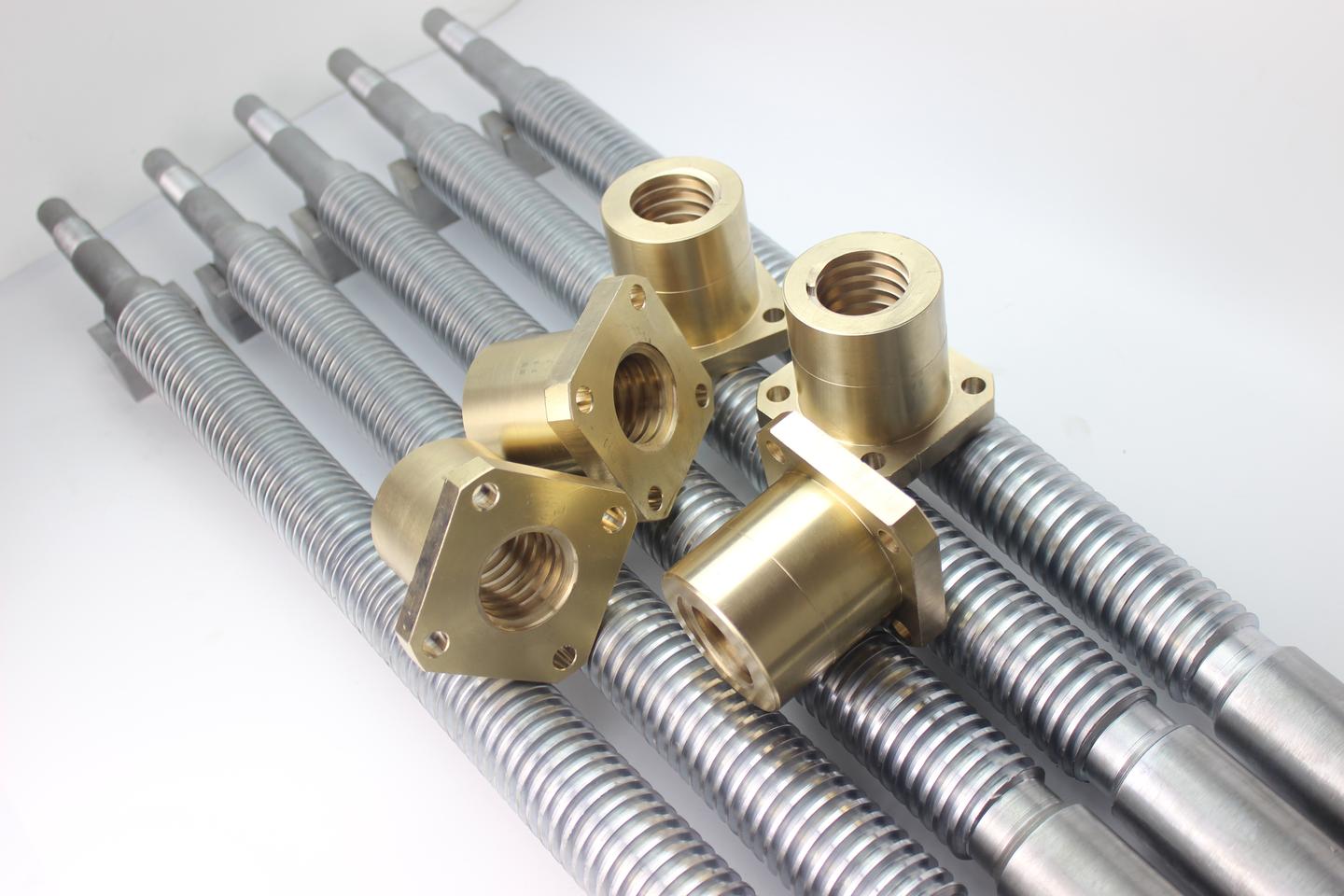

Our matching brass nuts are precision-machined to achieve exact fit with T5/T8 and other screw sizes, controlling initial backlash within industry standards and avoiding "congenital defects."
（3）Misalignment During Installation Amplifies Clearance Over Time
If the lead screw is misaligned with the motor shaft or linear guide during installation, additional lateral forces are generated during operation. These forces accelerate thread wear and cause micro-deformation of the screw, eventually manifesting as continuously increasing backlash.
Many 3D printer manufacturers report that even a coaxiality deviation of just 0.05mm can lead to noticeable backlash affecting print accuracy after one month of continuous operation.
2、3 Immediate Solutions to Fix Backlash
（1）Switch to Stainless Steel for Longer Precision Retention
For equipment operating in humid or dusty environments, replace carbon steel trapezoidal lead screws with stainless steel versions (e.g., T8 Tr8 stainless steel). Field tests show that stainless steel improves wear resistance by 50% compared to ordinary carbon steel, slowing backlash growth by more than 2x—ideal for long-running applications like 3D printers.
（2） Use Preload-Type Nuts to Actively Eliminate Clearance
For high-precision applications (e.g., Z-axis of 3D printers), opt for brass nuts with preloading structures. Elastic preloading or double-nut designs actively counteract thread clearances, keeping backlash within 0.02mm, ensuring no significant precision drift even after prolonged use.
（3）Standardize Installation to Ensure Coaxiality
Follow these critical installation steps:
- Use a dial indicator to verify coaxiality between the lead screw and motor shaft, keeping deviations within 0.02mm
- Level the screw end supports with the equipment base to avoid lateral loading
- Use floating joints when connecting the nut to the load to further compensate for installation errors
Our technical team provides free installation guidance to help you minimize installation errors.
| Application |
Recommended Size |
Key Advantages |
| Desktop 3D Printers |
T5/T8 Tr8 Stainless Steel |
Compact size, stable precision, ideal for high-frequency reciprocation |
| Small Automation Equipment |
T10/T12 Steel/Stainless Steel |
Higher load capacity, balancing cost and service life |
| Low-Speed Conveyors |
Large Lead Trapezoidal Lead Screws |
Reliable transmission, low cost, suitable for low-precision requirements |
4. Get a Tailored Solution for Your Backlash Issues
If your equipment is suffering from excessive backlash or precision drift:
- Send us your equipment model, load requirements, and precision needs, and our engineers will recommend the optimal screw size and preloading solution within 1 working day.
- Standard trapezoidal lead screws ship within 7 days, with direct delivery from Shanghai Port, and small-batch customization is supported.
Don’t let backlash slow down your production efficiency. Choose the right trapezoidal lead screw to keep your equipment precision stable for the long term.
